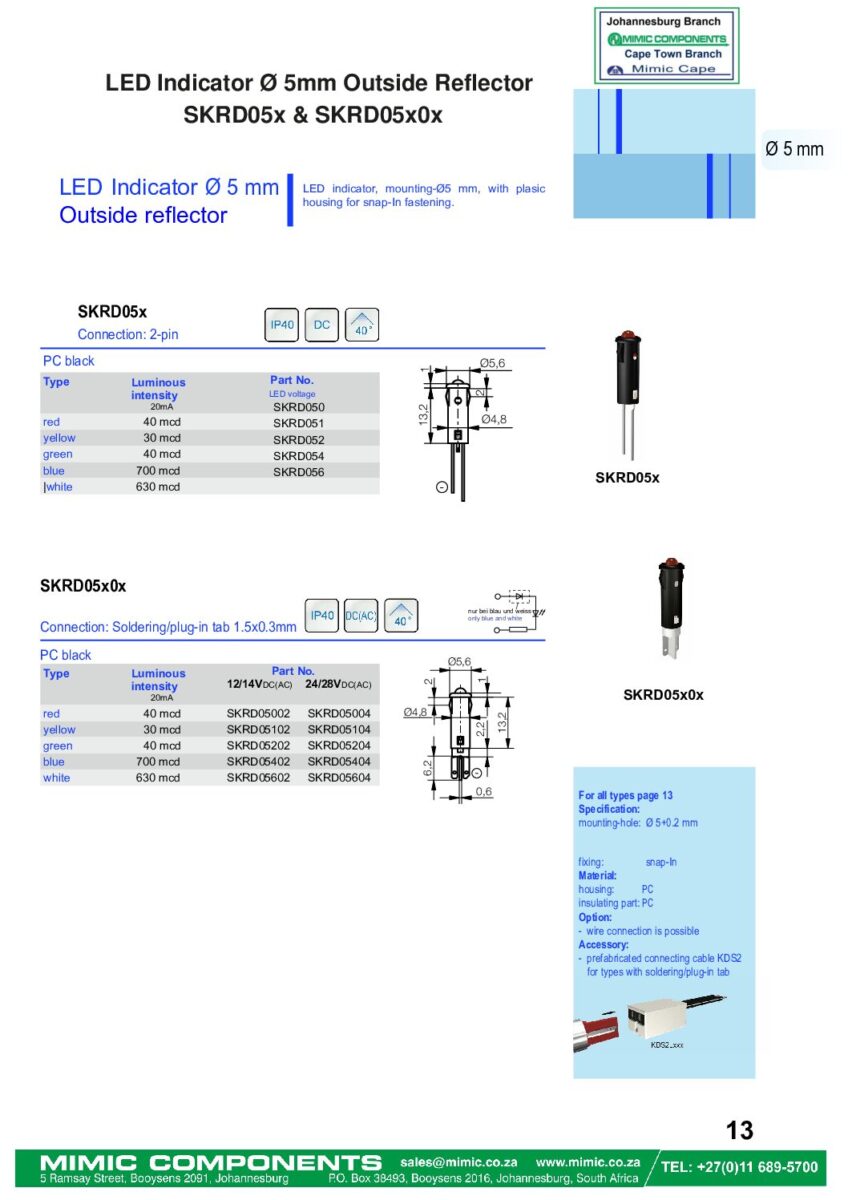

October 10, 2025The document describes the SKRD05x series of Ø 5 mm LED indicators, which feature a plastic PC housing and are designed for simple snap-in fastening into a Ø 5+0.2 mm mounting hole. The indicators are available in various colors (red, yellow, green, blue, white) and offer a wide range of luminous intensities, peaking at 700 mcd for the blue variant. Connection options include a standard 2-pin type or models utilizing soldering/plug-in tabs (1.5×0.3mm), with accessories like prefabricated connecting cables (KDS2) available.
File Type:
pdf
File Size:
754 KB
Categories:
LED Indicators
