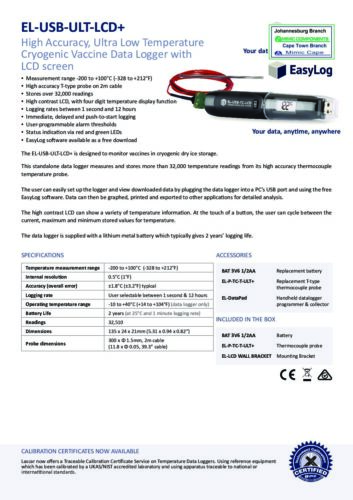

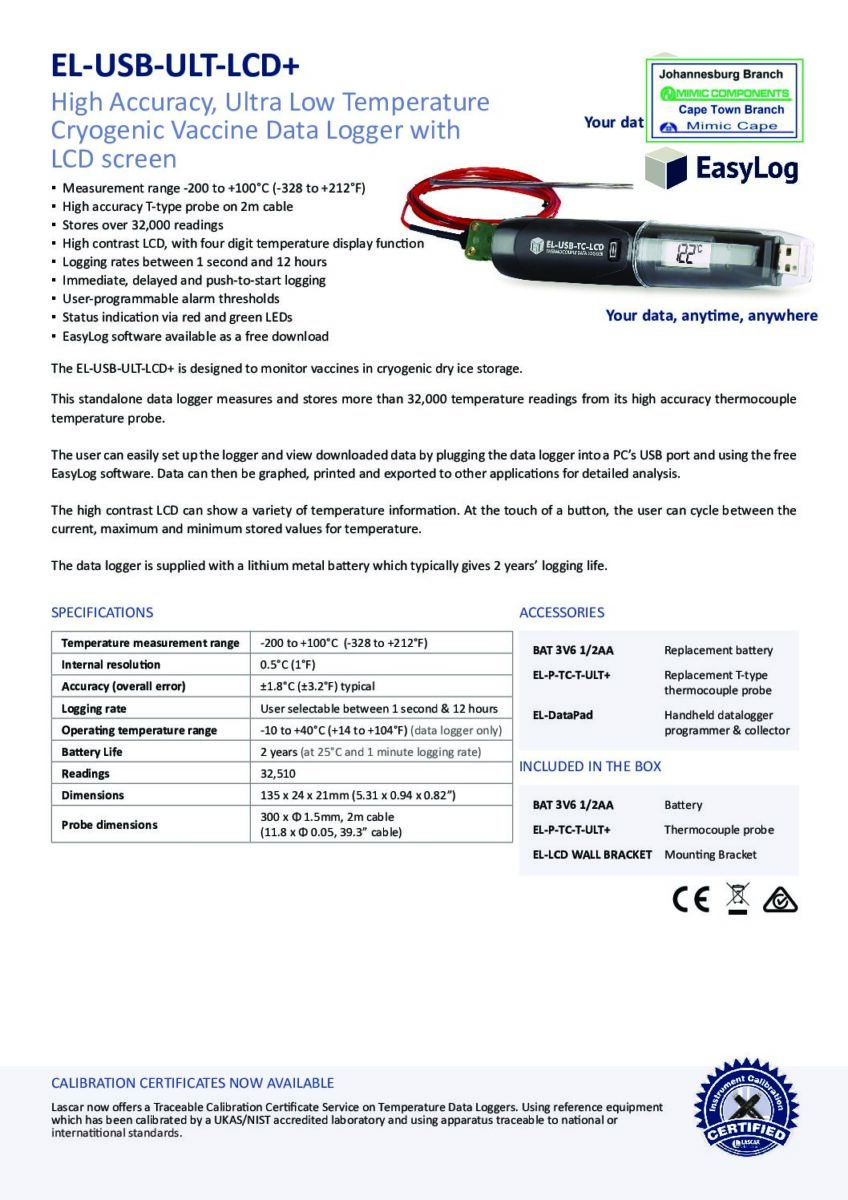

October 10, 2025The EL-USB-ULT-LCD+ is a high-accuracy data logger designed specifically for monitoring vaccines stored in cryogenic dry ice, featuring a broad measurement range of -200 to +100°C. This standalone device stores over 32,000 readings collected via its high-accuracy T-type thermocouple probe. Users configure the logger and manage data through the free EasyLog software accessed via a PC’s USB port. It includes an LCD screen to display logged values (current, maximum, and minimum) and uses red and green LEDs to indicate logging status and user-programmable alarm conditions.
File Type:
pdf
File Size:
1 MB
Categories:
Datalogging
