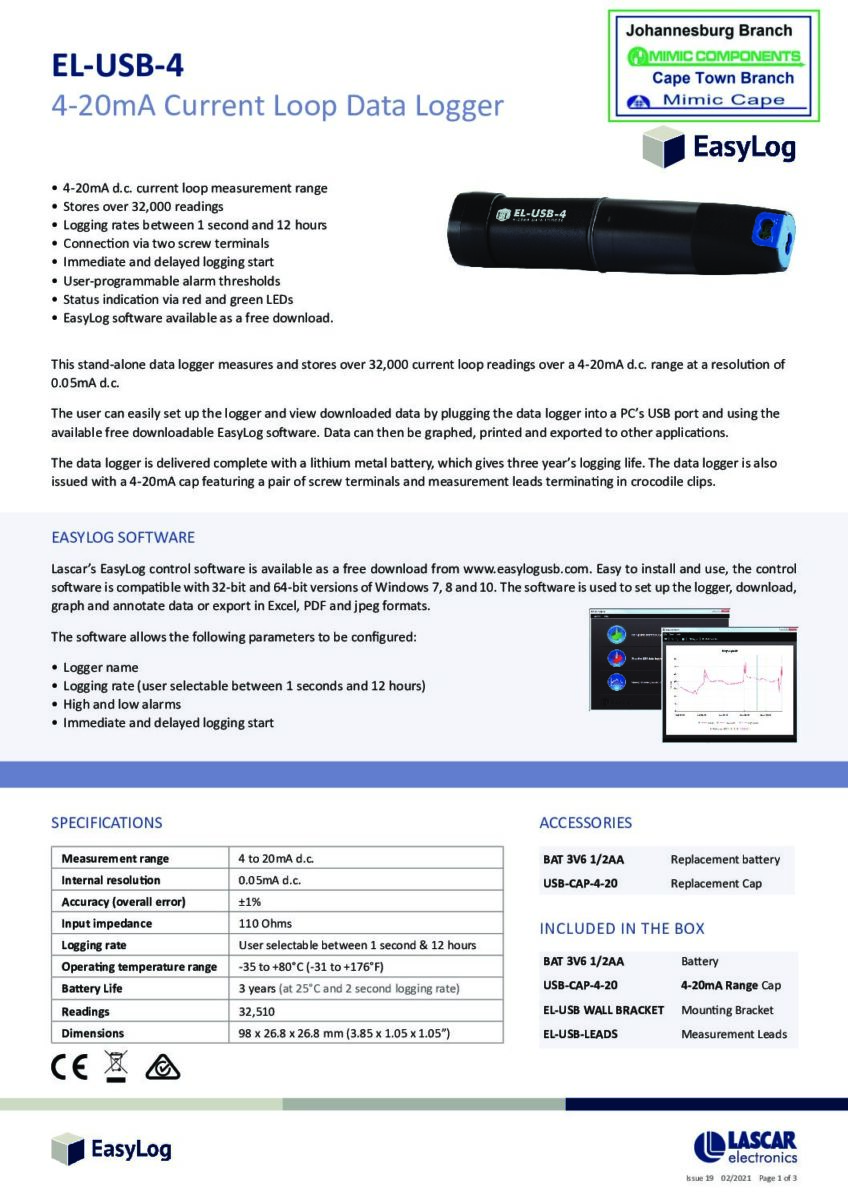

Current Data Logger EL USB 4. mimic Comp Mimic Cape

The EL-USB-4 is a stand-alone data logger designed to measure and store over 32,000 readings within a 4-20mA d.c. current loop range with a resolution of 0.05mA. Setup and data retrieval are managed by plugging the device into a PC’s USB port and using the free EasyLog software, which allows users to graph, export data, and configure parameters like logging rate and high/low alarms. The logger offers user-selectable logging rates between 1 second and 12 hours and includes a battery providing three years of logging life. Visual status indication is provided via red and green LEDs, which signal normal operation, delayed start, and triggered alarm conditions.
